Features
The Foliant Vega A Laminating Machine is a very compact industrial
laminating machines, designed for heavy-duty lamination of digital and
offset printing. It is equipped with an integrated deep pile vacuum
feeder, high-speed bump separator and adjustable twin de-curl bar and
overlap system. Due to its pneumatic high-pressure system (with
integrated compressor inside machine frame), format and performance, the
machine is suitable for all jobs all kinds of digitally printed
sheets and high volumes of offset printed sheets for lamination.
Fast
The
machines maximum speed is up to 59 feet/minute. Here are some production examples:
Vega 400 A - 2,100 sheets per hour of 14″ x 20″ portrait (white paper 200
gsm)
Vega 530 A - 1,550 sheets per hour of 19.7″ x 27.8″ portrait or over 3,000
sheets 14″ x 20″ landscape (blank paper 200 gsm).
Advantages at a Glance
- Easy operation
- Equipped with a rising pile front separation stream feeder with a vacuum belt head
- Single-sided thermal industrial laminator
- Film is mounted on a quick change shaft with a film tension control breaker
- Film holder unit is equipped with a trim slitter and perforation wheel
- Does not need external source for pressured air
- Pressure is pneumatically adjustable
- De-curl blade for offset printed sheets
- De-curl roller for digitally printed sheets
- Icon based touchscreen control system for easy automation
- Integrated bump sheet separator
- Optional
Reception Unit 400/530*, Jogger 400/530*, non-sticky pressure roller, Foliant
Foiler, extra film supply roll shaft, pneumatic separation, and air
shaft available
*Important The machine must be operated with either a reception unit or a jogger.
Vega 400 A
(14.9 x 25.9 max sheet)

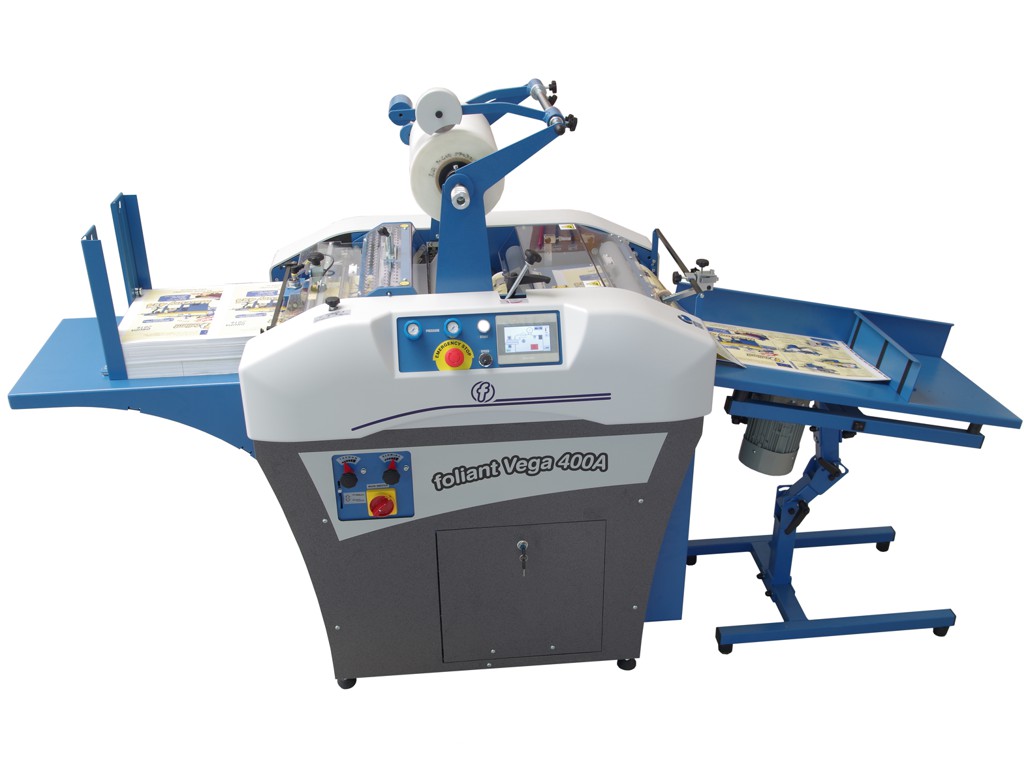

Vega 400 A shown with Optional Jogger 400 delivery
OPTIONS:
JOGGER 400*
The Jogger 400 is an adjustable vibrating reception unit for stacked laminated sheets.
Its capacity is limited to 3.9 of paper.
RECEPTION UNIT 400*
The Reception Unit 400 is a simple adjustable reception unit for stacking the laminated sheets. Its capacity is 3.9 of paper.
FOLIANT FOILER
Winding device that allows use of metalized film (gold, silver, red, etc.) and spot varnish film.
EXTRA FILM SUPPLY ROLL SHAFT
Additional Film Supply Roll Shaft for quicker film replacement.
PNEUMATIC SEPARATION
The
standard mechanical separation system is replaced with a pneumatically
powered system. The advantage is in better control of the whole
separation process. It is supplied with control valves for the delay of
separation and separation timing. This helps to separate thin sheets,
thicker film, nylon film and helps with some other difficult jobs where
fine tuning is necessary. Machines with this modification have to be
connected to external pressurized air supply (6-8 bars, 50 l/min). The
machine is supplied without a compressor.
*Important - The machine must be operated with either a Reception Unit or a Jogger.
Vega 400 A Brochure:
Vega 530 A
(20.8" x 29.5" max sheet)

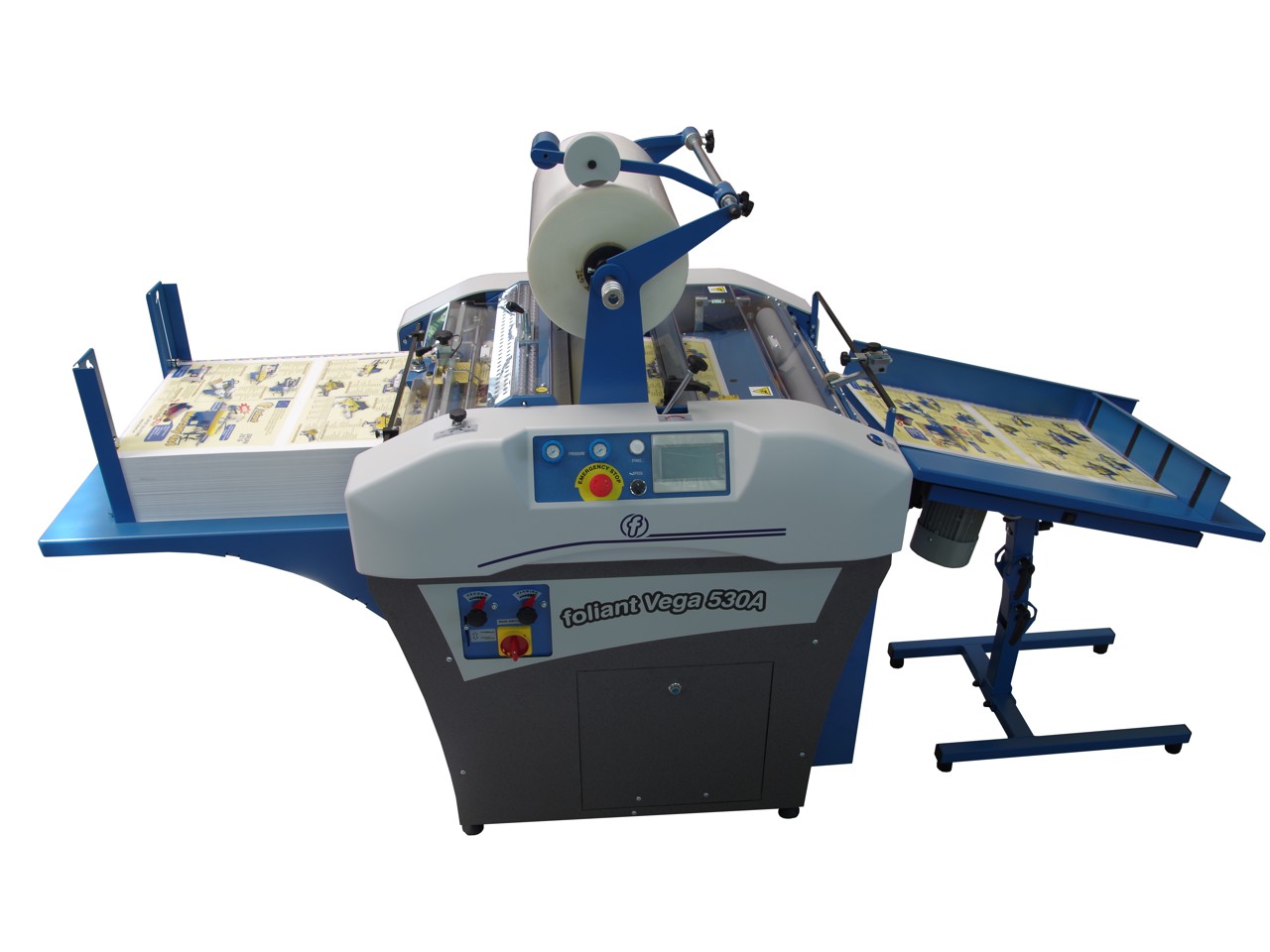

Vega 530 A shown with optional Jogger 530 delivery
OPTIONS:
JOGGER 530*
The Jogger 530 is an adjustable vibrating reception unit for stacked laminated sheets.
Its capacity is limited to 3.9 of paper.
RECEPTION UNIT 530*
The Reception Unit 530 is a simple adjustable reception unit for stacking the laminated sheets. Its capacity is 3.9 of paper.
FOLIANT FOILER
Winding device that allows use of metalized film (gold, silver, red, etc.) and spot varnish film.
NON-STICKY PRESSURE ROLLER
Standard
rubber pressure roller is replaced by a roller with a non-sticky
surface. Melted glue from the film cannot stick to it, even under heavy
pressure. Cleaning of this roller is not necessary at all. It allows for
the lamination of sheets with windows.
EXTRA FILM SUPPLY ROLL SHAFT
Additional Film Supply Roll Shaft for quicker film replacement.
AIR SHAFT
Standard
film holder is replaced with an air shaft for quick, tool-less film
installation. This option is only available together with the pneumatic
separation option.
PNEUMATIC SEPARATION
The standard mechanical
separation system is replaced with a pneumatically powered system. The
advantage is in better control of the whole separation process. It is
supplied with control valves for the delay of separation and separation
timing. This helps to separate thin sheets, thicker film, nylon film and
also helps with some other difficult jobs where fine tuning is
necessary. Machines with this modification have to be connected to
external pressurized air supply (6-8 bars, 50 l/min). The machine is
supplied without a compressor.
*Important - The machine must be operated with either a Reception Unit or a Jogger.
|
