Foliant Vega SF Laminator

Home > Laminating and Coating > Laminating Machines > Roll Laminators > Industrial Grade and High-Speed Roll Laminators >

Alternative Views:

Call us for a quote

Product Code: G47954

Description

The Vega SF comes in two sizes; the 400 (15" x 26" max size) and the 530 (20″ x 30″ max size). Laminates one side of sheets with speeds up to 65 ft/min. Vacuum-fed deep pile feeder is standard. Precise and heavy duty, all in a compact footprint.

Features
The Foliant Vega SF Laminating Machines are very compact industrial laminating machines designed for heavy-duty lamination of digital and offset printed sheets .

Well-Equipped-
These models are equipped with integrated deep pile suction feeder, pneumatic high-speed bump separator, adjustable dual de-curl bar and overlap system.

Versatile-
Due to its high pneumatic pressure system, format and performance, the machine is suitable for all jobs – all kinds of digitally printed sheets and high volumes of offset printed sheets.

Fast-
Maximum speed is up to 65 feet/minute.
Examples:
Vega 400 SF - 2,300 SPH of 14″ x 20″ portrait (blank paper 200 GSM)
Vega 530 SF - 1,720 SPH of 19.7″ x 27.8″ portrait or 3,000 SPH 14″ x 20″ landscape (white paper 200 GSM)

Advantages at a Glance

Easy operation
Rising pile suction feeder
Single-sided thermal industrial laminator
Film is mounted on a quick change shaft with a film tension control breaker
Film holder unit is equipped with a trim slitter and perforation wheel
Does need external source for pressured air
Pressure is pneumatically adjustable
De-curl blade for offset printed sheets
De-curl roller for digitally printed sheets
Icon based touchscreen control system for easy automation
Integrated bump sheet separator

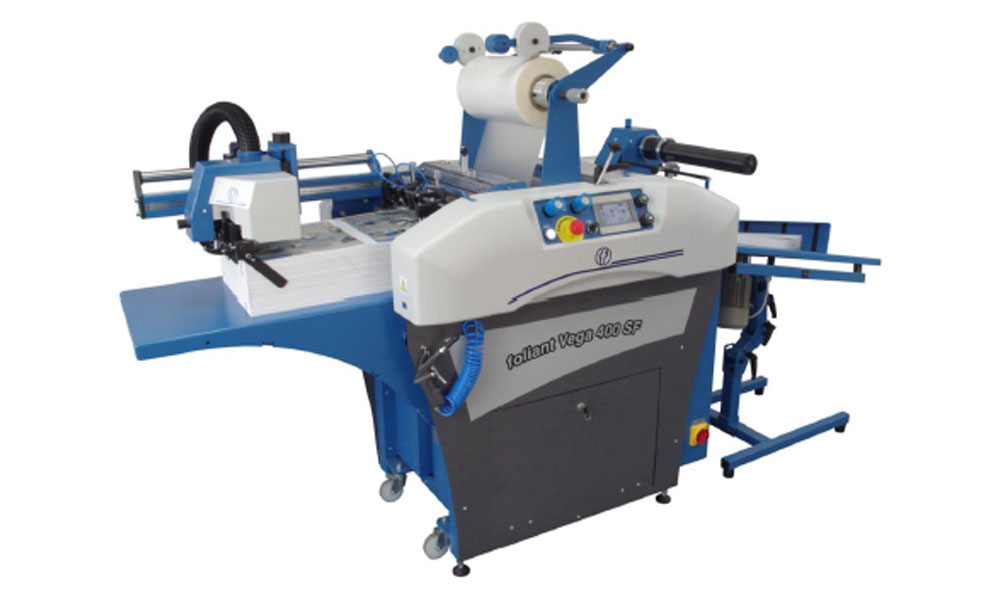

Vega 400SF
(Max sheet size: 15″ x 26″).

Vega 400 SF shown with optional Foliant Foiler and Jogger 400 delivery

Options
Reception Unit 400 *
Jogger 400 *
Non-sticky pressure roller
Heidelberg Feed Head
Foliant Foiler - Digital Foil AKA Sleeking
Extra film supply roll shaft
Pneumatic separation
Air Roll Shaft
*Important – The machine must be operated with either a reception unit or a jogger.
Vega 400 SF Brochure:

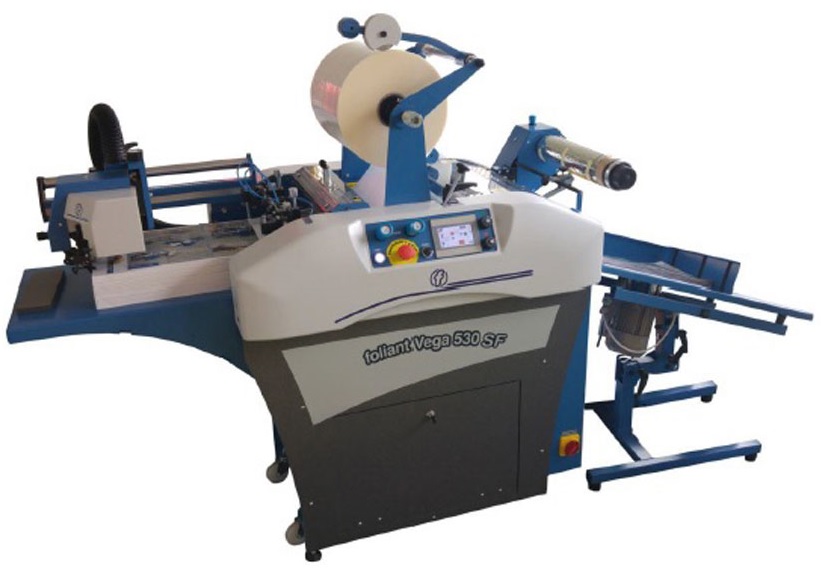

Vega 530 SF
(Max sheet size: 20″ x 30″).

Vega 530 SF shown with optional Foliant Foiler and Jogger 530 delivery

Options
Reception Unit 530 *
Jogger 530 *
Non-sticky pressure roller
Heidelberg Feed Head
Foliant Foiler - Digital Foil AKA Sleeking
Extra film supply roll shaft
Pneumatic separation
Air Roll Shaft
*Important – The machine must be operated with either a reception unit or a jogger.
Vega 530 SF Brochure:
