G26070 - Deluxe Model M27 Multi-Head Stitcher
G26070 - Deluxe Model M27 Multi-Head Stitcher

Alternative Views:
Our Price: USD$19,080.00


Product Code: G26070

Description

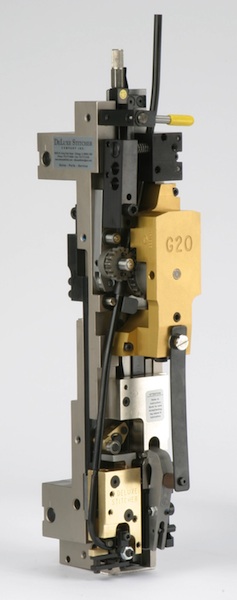

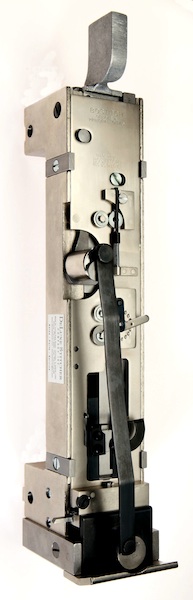

The newly designed M27 can accommodate up to four stitcher heads; ither the conventional 18D or the G20 Side-Feed Heads. The M27 is our highest capacity multiple-head stitcher.
Features

Capacity: from 2 sheets to 3/4" [20mm] with a G20 Head; from 2 sheets to 9/16" [14mm] with a 18D Head
Wire Sizes: 20-28 round or 19x21-1/2, 20x24 and 21x25 flat
* Some wire sizes may require additional parts.
Clinch: moveable clincher for flat stitching
Table: 33" [84cm] wide heavy duty, 14" [36cm] throat for flat and saddle work
Speed: 150 stitches per minute

Note: M27 Stitcher head capacities:
* 2 maximum with 18D heads
* 4 maximum with G20 heads
(When using 4 G20 heads, maximum stitching capacity is 1/2” [13mm].)

Shipping Dimensions: 30" x 35" x 64" [76cm x 89cm x163cm]
Shipping Weight: 580 lbs. [263 kg]


Download Operator and Parts Manual

The M27 Stitcher comes in several variations:


Models With Two 18D Heads Capacity: from 2 sheets up to 9/16" (14mm)

Deluxe M27 Stitcher With Two 18D Heads Base Model (the product on this page) - 115VAC - Model Number M27-AST
Deluxe M27 Stitcher With Two 18D Heads - 230VAC/50HZ - Model Number M27-BST
Models With Two G20 Heads Capacity: from 2 sheets up to 3/4")

Deluxe M27 Stitcher With Two G20 Heads - 115VAC/60HZ - Model Number M27G20-AST
Deluxe M27 Stitcher With Two G20 Heads - 230VAC/50HZ Model Number M27G20-BST
