G26077 - Deluxe Model M2 Single-Head Stitcher
G26077 - Deluxe Model M2 Single-Head Stitcher

Alternative Views:


Our Price: USD$6,980.00


Product Code: G26077

Description

The M2 Stitcher is ideal for print shops and binderies requiring rapid output of production. A single adjustment sets the machine for thickness of work. The M2 is especially suited for flat and saddle work ranging in thickness from 2 pages to 5/16" thick.
Features

  • Capacity: from 2 sheets to 5/16" [8mm] with a G8 Head from 2 sheets to 1/4" [6mm] with a 26D
  • Head Wire Sizes: 21-25 round or 21x25 flat
  • Clinch: moveable clincher for flat stitching
  • Table: 26" wide heavy duty, 14" throat for flat and saddle work
  • Speed: 215 stitches per minute
  • Shipping Dimensions: 30" x 35" x 64" [76cm x 89cm x163cm]
  • Shipping Weight: 435 lbs. [198 kg]
Download Operator and Parts Manual


The M2 Stitcher comes in several variations:

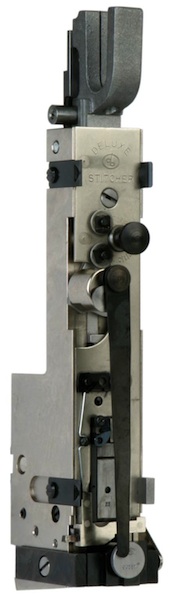

Models With A 26D Head Capacity: from 2 sheets up to 1/4"
Deluxe M2 Stitcher With Standard 26D Head Base Model (the product on this page) - 115VAC - Model Number M2-AST
Deluxe M2 Stitcher With Standard 26D Head - 230VAC/50HZ - Model Number M2-BST
Deluxe M2 Stitcher With Standard 26D Head - For 23ga wire with 1/2" Crown - 115VAC/60HZ - Model Number M2-AST-231/2
Deluxe M2 Stitcher With Standard 26D Head For 21x25ga Flat Wire 5/16" Crown - Solid Clincher Plate - 115VAC/60HZ - Model Number M2-AST-21255/16-SCP

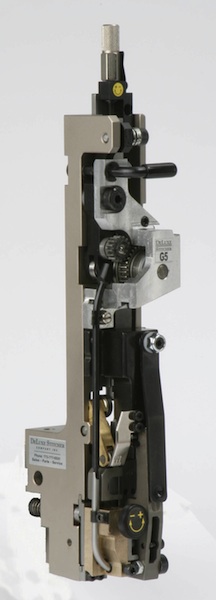

Models With A G5 Head Capacity: from 2 sheets up to 13/64" (5mm)
Deluxe M2 Stitcher With G5 Head - 115VAC/60HZ - Model Number M2G5-AST
Deluxe M2 Stitcher With G5 Head - 230VAC/50HZ Model Number M2G5-BST

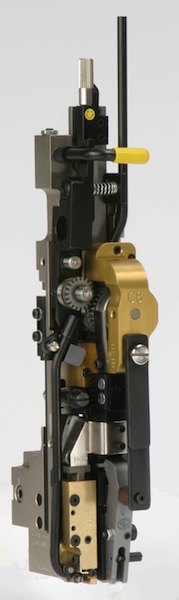

Models With A G8 Head Capacity: from 2 sheets up to 5/16" (8mm)
Deluxe M2 Stitcher With G8 Head - With Solid Clincher Plate - 115VAC/60HZ - Model Number M2G8-AST-SCP
Deluxe M2 Stitcher With G8 Head - 115VAC/60HZ - Model Number M2G8-AST
Deluxe M2 Stitcher With G8 Head - 230VAC/50HZ - Model Number M2G8-BST
