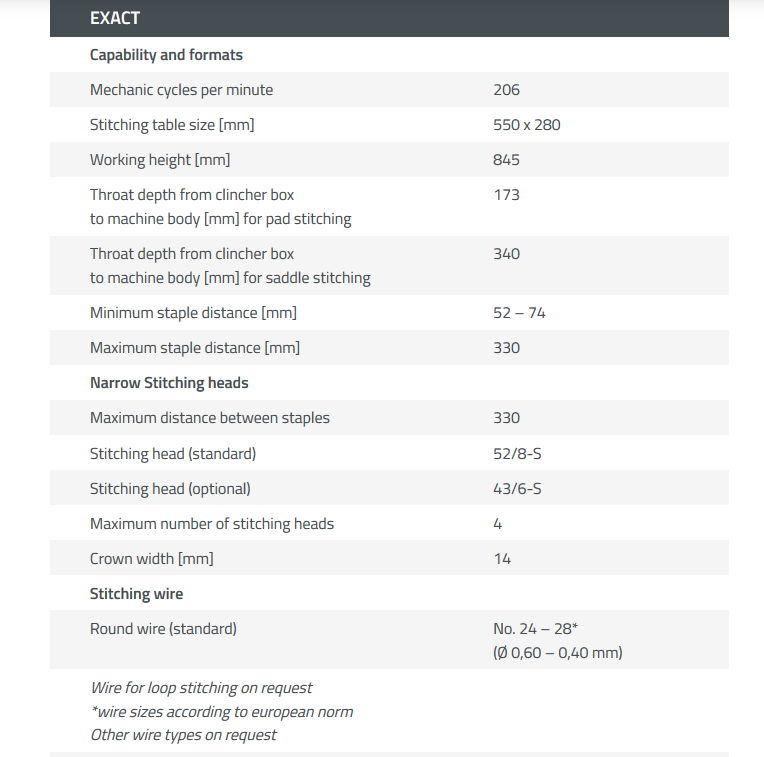

Capability and formats
|
|
|
Mechanic cycles per minute
|
206
|
|
Stitching table size [mm]
|
550 x 280
|
|
Working height [mm]
|
845
|
|
Throat depth from clincher box
to machine body [mm] for pad stitching
|
173
|
|
Throat depth from clincher box
to machine body [mm] for saddle stitching
|
340
|
|
|
Minimum staple distance [mm]
|
52 – 74
|
|
|
Maximum staple distance [mm]
|
330
|
|
|
Narrow Stitching heads
|
|
|
|
Maximum distance between staples
|
330
|
|
|
Stitching head (standard)
|
52/8-S
|
|
|
Stitching head (optional)
|
43/6-S
|
|
|
Maximum number of stitching heads
|
4
|
|
|
Crown width [mm]
|
14
|
|
|
Stitching wire
|
|
|
|
Round wire (standard)
|
No. 24 – 28*
(Ø 0,60 – 0,40 mm)
|
|
|
Wire for loop stitching on request
*wire sizes according to European norm
Other wire types on request
|
|
|

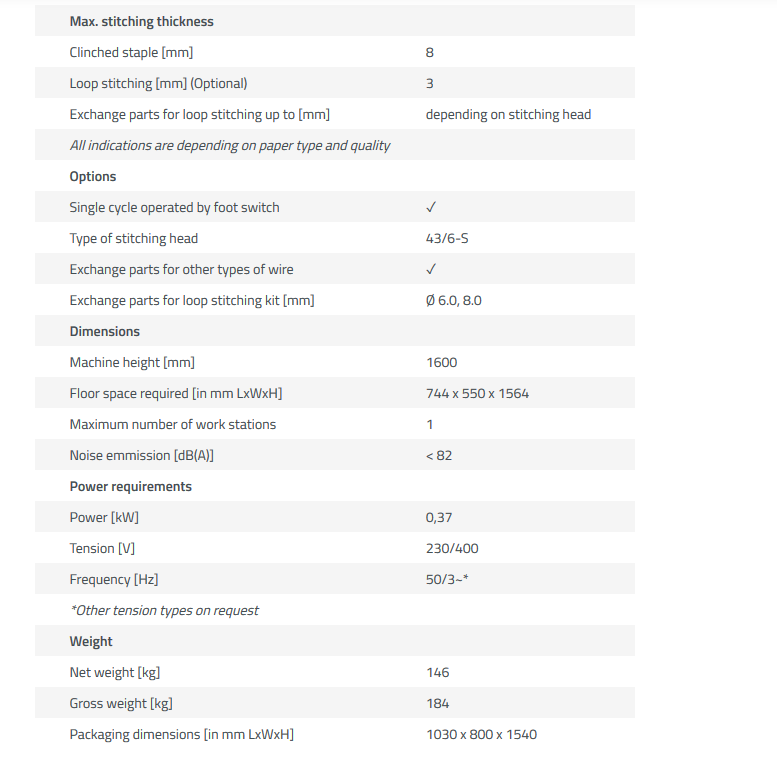

Max. stitching thickness
|
|
|
|
Clinched staple [mm]
|
8
|
|
|
Loop stitching [mm] (Optional)
|
3
|
|
|
Exchange parts for loop stitching
up to [mm]
|
depending on stitching head
|
|
|
All indications are depending on
paper type and quality
|
|
|
Options
|
|
|
|
Single cycle operated by foot
switch
|
✓
|
|
|
Type of stitching head
|
43/6-S
|
|
|
Exchange parts for other types of
wire
|
✓
|
|
|
Exchange parts for loop stitching
kit [mm]
|
Ø 6.0, 8.0
|
|
|
Dimensions
|
|
|
|
Machine height [mm]
|
1600
|
|
|
Floor space required [in mm L x W x H]
|
744 x 550 x 1564
|
|
|
Maximum number of work stations
|
1
|
|
|
Noise emmission [dB(A)]
|
< 82
|
|
|
Power requirements
|
|
|
|
Power [kW]
|
0,37
|
|
|
Tension [V]
|
230/400
|
|
|
Frequency [Hz]
|
50/3~*
|
|
|
*Other tension types on request
|
|
|
Weight
|
|
|
|
Net weight [kg]
|
146
|
|
|
Gross weight [kg]
|
184
|
|
|
Packaging dimensions [in mm L x W x H]
|
1030 x 800 x 1540
|
|
